BTO P•DESK Intel D4

Beschrijving

Specificaties BTO P•DESK Intel D4

Processor	– 12e generatie Intel® Core™ processor
Chipset	– Intel ®H670 Chipset
Werkgeheugen	– Maximaal 64GB DDR4 (2x 32GB modules in 2 slots)
Opslag mogelijkheden	– 2x SATA 600 – 2x M.2 SSD Slot op moederbord
Aansluitingen (achterkant) Asrock B660M-ITX/ac	– 2 x Antenna Ports – 1 x PS/2 Mouse/Keyboard Port – 1 x HDMI Port – 1 x DisplayPort 1.4 – 2 x USB 3.2 Gen1 Ports (Supports ESD Protection) – 2 x USB 2.0 Ports (Supports ESD Protection) – 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) – HD Audio Jacks: Line in / Front Speaker / Microphone

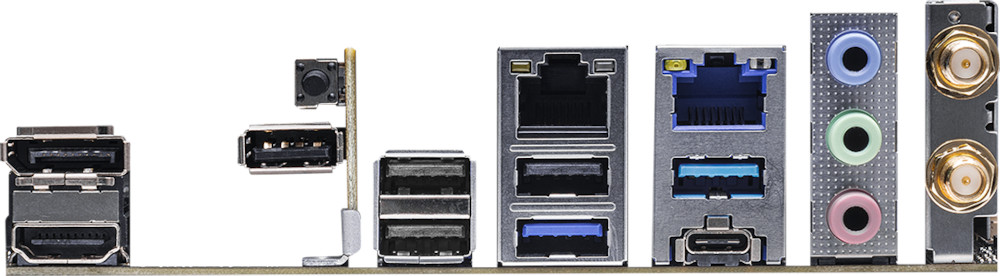

Aansluitingen (achterkant) Asrock H670M-ITX/ax	– 2 x Antenna Ports – 1 x HDMI Port – 1 x DisplayPort 1.4 – 2 x USB 3.2 Gen2 Ports (10 Gb/s) (Supports ESD Protection) – 1 x USB 3.2 Gen2x2 Type-C Port (20 Gb/s) (Supports ESD Protection) – 4 x USB 2.0 Ports (Supports ESD Protection) – 2 x RJ-45 LAN Ports with LED (ACT/LINK LED and SPEED LED) – 1 x BIOS Flashback Button – HD Audio Jacks: Line in / Front Speaker / Microphone
Aansluitingen (voorkant)	– 2 x USB 3.0 – 1 x Hoofdtelefoon uitgang (3.5mm mini-jack) – 1 x Microfoon ingang (3.5mm mini-jack)

Specificaties Node 202

• Mini ITX motherboard compatibility
• 2 – 2.5″ SSD unit positions (height limitation 10.5mm)
• 2 expansion slots
• 2 – 120mm optional fan positions in graphics card chamber
• CPU coolers up to 56 mm in height
• PSU compatibility: SFX PSUs up to 130mm long
• Graphics card compatibility: Maximum dimension of graphics card is 310x145x47mm (LxHxD)
• Can be placed both vertical and horizontal position
• 3 dust filters included (for CPU, GPU and PSU)
• Case volume: 10.2 litres
• Colors available: Black
• Case dimensions – Horizontal (WxHxD): 377 x 82 x 330 mm
• Case dimensions – Horizontal, with feet/protrusions/screws (WxHxD): 377 x 88 x 332 mm
• Case dimensions – Vertical, with feet/protrusions/screws (WxHxD): 125 x 385 x 332 mm
• Net weight: 3.5 kg
• Package dimensions (WxHxD): 145 x 463 x 388 mm
• Package weight: 4.0kg
